How to know if your Nissan or Infiniti gauge cluster is failing & Repair Guide

We've been seeing a lot of these vehicles having Nissan/Infiniti Gauge Cluster Repair problems recently. It's one of those problems that just plagues a generation of vehicles.

Affected Vehicles

  • 2003–2008 Nissan Murano
  • 2003–2008 Nissan Maxima
  • 2003–2008 Infiniti G35
  • 2003–2008 Infiniti FX35

Associated Fault Codes

No specific codes associated with this hardware failure.

Difficulty
Diagnosis
(10 mins)
Repair
(2 hours)

1Is this my Problem?

Here are the most common scenarios we hear from our customers experiencing the Nissan/Infiniti Gauge Cluster Repair failure and what you will notice.

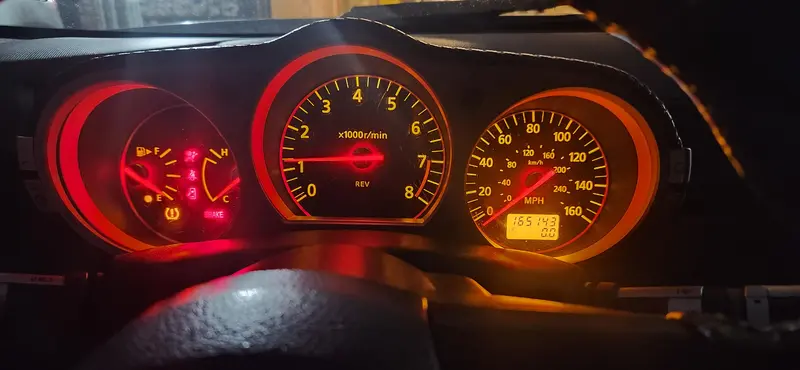

Nissan/Infiniti Gauge Cluster Repair

Observable Symptoms:

  • Speedometer shows the wrong speed or sticks completely
  • Fuel gauge is inaccurate or completely dead
  • Temperature needle does not move

A framework for being sure

  1. Turn the key to ON and watch the needle sweep. A needle that jumps, sticks, or lands off its peg is a failed stepper motor, not a sending unit.
  2. Compare the speedometer against a phone GPS. Reading low or freezing at one speed points at the cluster's X27 stepper.
  3. Check how many gauges misbehave. Two or more bad needles rules out individual sensors and confirms the cluster.

Now you know for sure you have this problem.

2Solutions

Mail-In Repair

24hr Turnaround
$195

Pull the module out yourself and let the professionals repair it.

Text to Start

Full Service

Same-Day
$295

Relax, our local trusted technicians will get you back on the road today.

Dispatch

DIYer

3-4 Hours
$0

Keep reading below for the step-by-step how to.

Guide

3Pull the Part

Tools you may need:

  • Plastic Trim Pry Tools
  • Phillips Screwdriver
  • 10mm Wrench

Parts you may need:

  • None required for removal
  1. Disconnect the negative battery terminal with a 10mm wrench.
  2. Pry the cluster finisher trim off the top of the dash with plastic tools, working from the windshield side.
  3. Remove the Phillips screws holding the cluster to the dash frame.
  4. Tilt the cluster forward, release the connector locking tabs, and unplug the harnesses.
  5. Lift the cluster out and set it face-up on a clean towel so the needles are not loaded.

4Fix It

Tools you may need:

  • Temperature-Controlled Soldering Iron
  • Solder Sucker
  • Gauge Needle Puller

Parts you may need:

  • X27.168 Stepper Motors
  • 63/37 Leaded Solder
  1. Unclip the lens and mask, then pull each needle straight off with a needle puller, noting its resting position first.
  2. Separate the board from the housing and locate the X27.168 stepper motors behind the affected gauges.
  3. Desolder the four legs of each failed stepper and lift it off the board.
  4. Solder in new X27.168 motors with 63/37 leaded solder, keeping each body flush against the board.
  5. Press the needles back on at the factory rest position, reassemble, and verify the full sweep on key-on.
